SMD 3030x4 60 Degree LED Module Lens With Gasket And Pcb For Flood Light

ChenMu Lighting technology co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

SMD 3030x4 60 Degree LED Module Lens With Gasket And Pcb For Flood Light

  • 1
  • 2
  • 3

Brand Name : ChenMu

Model Number : CM-S30845-A60D-22H1

Certification : ROHS,UL,SGS,

Place of Origin : Zhejiang,China

MOQ : 1000PCS

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100000PCS/Per week

Delivery Time : 3-5 working days

Packaging Details : Cartons

Transmittance : >91%

Description : Optical lens for street lighting

Beam Angle : 60 degrees

Certifications : RoHS, CE,

Dimension : L308.1*W45

Shape : Spherical

Usage : Optical,LED Flood Light,Lighting,led spotlights,led street lighting

Material : Plastic,PC,Optical grade PC

Color : Transparent,Clear,Transparent Clear 90%

Product name : module lens,smd 3030 led optical lens 140 leds street light,50 Watts 3030SMD Lens With PCB Plate For LED Street Light Module

Match led : 3030 SMD CHIP 140-150lm/w

Craft : Molded

Contact Now

SMD 3030x4 60 Degree LED Module Lens With Gasket And Pcb For Flood Light

This SMD 3030x4 LED module features a 60° beam angle lens, integrated silicone gasket (IP65/IP66 rated), and a high-reflectivity PCB, designed specifically for flood light applications. It ensures high lumen output, uniform illumination, and waterproof protection, making it ideal for outdoor and industrial lighting.

Quick detail

Product Name: CM-S30845-A60D-22H1 Beam Angle: 60°
Efficiency: 92% Material: PC
LED Chips 3030x4 Dimmable: L308*W45 mm
Accessory: SMD LED+GASKET+PCB+Heat Sink or Module
Application: Flood Light,Tunnel Light, Street Light

Description

SMD 3030x4 60 Degree LED Module Lens With Gasket And Pcb For Flood Light

  • Waterproof Design: Silicone gasket ensures IP65/IP66 protection (dustproof & waterproof)
  • Optical Lens: 60° beam angle for wide, uniform light distribution
  • LED Configuration: 4x SMD3030 LEDs (high brightness & efficiency)
  • PCB Material: High-reflectivity aluminum PCB (1.6mm thickness, 2oz copper) for optimal heat dissipation
  • Thermal Performance: -40°C to +85°C operating temperature range
  • Easy Installation: Pre-assembled module for quick integration into flood light fixtures
  • Applications: Flood Lights (outdoor, stadium, warehouse);High-Bay Lighting (industrial, factories);Architectural Lighting (facades, landscape); Parking Lot & Area Lighting

Specifications

Product Name: CM-S30845-A60D-22H1
Beam Angle: 60°
Efficiency: 92%
Material: PC
LED Chips 3030x4
Size: L308*W45 mm
Accessory: SMD LED+GASKET+PCB+Heat Sink or Module
Application: Flood Light,Tunnel Light, Street Light
Quatity Guarantee: If you receive a defective item, please
email us a picture of the defective part. We will arrange for a reshipment or refund to you.
Main Maket: Europe,South America,North America,Asia ect

Shipping and Delivery:


Trade Terms:
EXW , FOB , CNF , CIF
Payment Terms: T/T , PayPal , Western Union, Moneygram
Delivery time: 2-3 working days for samples order, 5-7 working days for bulk order
Shipment Terms By Sea, By Air, By Express like DHL, Fedex, UPS, TNT, etc

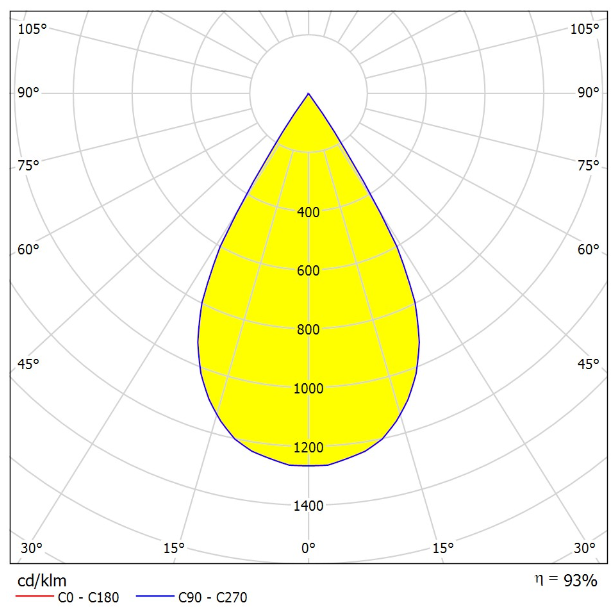

IES

SMD 3030x4 60 Degree LED Module Lens With Gasket And Pcb For Flood Light

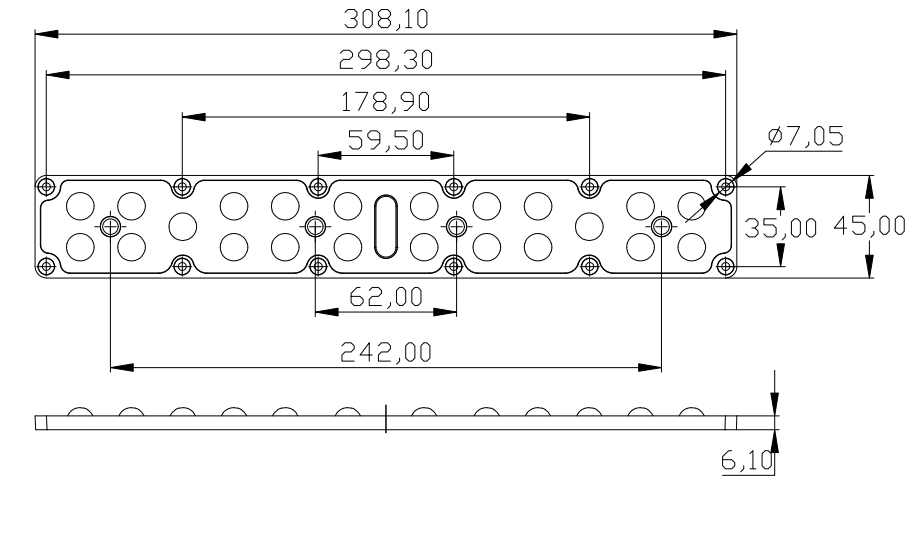

Drawing

SMD 3030x4 60 Degree LED Module Lens With Gasket And Pcb For Flood Light

Notices:

  • Storage: Do not store in dusty place, or expose under corrosive environment.
  • Contact: Do not touch the lens surface with bare-hand. Please use gloves to
  • touch the lenses.
  • Cleaning: Clean lenses only if necessary. Use only mild soap, water and
  • soft cloth.Do not use any commercial cleaning solvents.

FAQ

1) Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

Mixed samples are acceptable.

2) When can I get the quotation?

A: We usually give you an offer within 12 hours after we get your inquiry. But if you want to get the offer ASAP,please call us or email us that we can reply to you in time.

3) What is the lead time?

A:Sample needs about 3-5 days prepared; mass production time needs 7-10 days normally.

4) What are your main products?

A: Our main products are outdoor lenses and indoor lenses .such as:Street &AREA Light lens ,Single lenses,High Bay Light ,ect.
